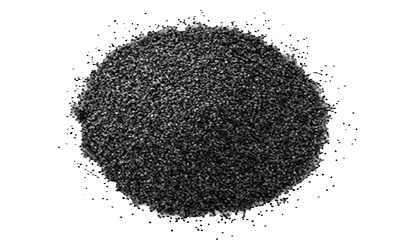

Cotton Filled Reinforced Powder (SI-171)
- Grade: SI-171
- Name: Fiber Reinforced Powder- Black
- Molding Process: Injection,Transfer
- Features: Good Surface Finish and High Gloss with improved Electric Resistance, Heat Resistancey
- Filler: Cellulose Fiber
Product Specifications:
| Powder Properties : | Unit | Typical value |
| Apparent Density | gm/ml | 0.15-.25 |
| Bulk Factor | —- | 5.2-9.0 |
| Shrinkage | cm/cm | 0.003-0.005 |
| Pelleting | —- | Poor |
| Physical Properties : | ||
| Impact Strength | Kg-cm | 8.3 |
| Tensile Strength | kg/cm2 | 428 |
| Cross Breaking strength | kg/ cm2 | 670-770 |
| Specific gravity | —- | 1.30-1.358 |
| Other Properties: | ||
| Water absorption | Mg | 350 |
| Rate of cure: | ||
| Min. cure at 160°C | sec/mm | 40-55 |
| Moulding conditions: | ||
| Recommended moulding temp. | °C | 150-165 |
| Recommended moulding pressure | kg/ cm2 | 250-450 |
